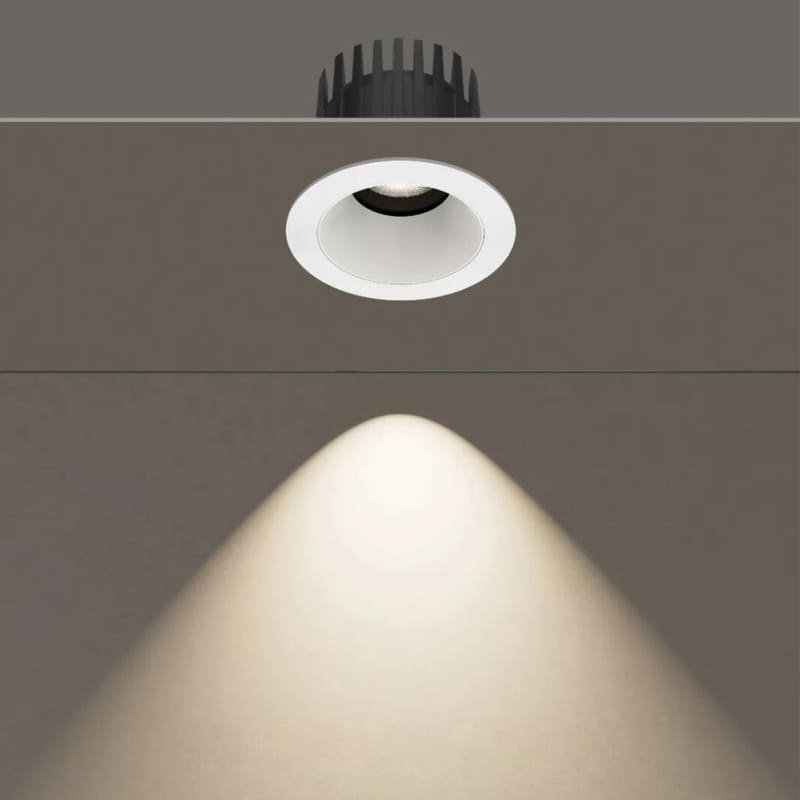

Recessed LED
Downlight Solutions
Professional OEM/ODM manufacturing of high-performance recessed LED downlights. From 3W to 120W, customizable designs for commercial and residential applications.
OEM/ODM & Wholesale Only. MOQ: 500pcs (Mixed)
Premium Recessed LED Downlight Features
Engineered for performance, designed for versatility. Our downlights deliver superior illumination for any space.
High Efficiency LED
Up to 120LM/W luminous efficiency with CREE, Bridgelux chips for maximum energy savings.
Adjustable Beam Angle
15°, 24°, 36°, 60° beam angles available. Customizable optics for precise light distribution.
Advanced Driver Technology
Flicker-free constant current drivers with TRIAC, 0-10V, and DALI dimming compatibility.
Superior Heat Management
Aluminum die-cast housing with optimized thermal design ensures 50,000+ hour lifespan.
Easy Installation
Spring-loaded clips for secure ceiling mounting. Compatible with standard junction boxes.
Customizable Design
Multiple trim options, color temperatures, and housing finishes to match any architectural style.

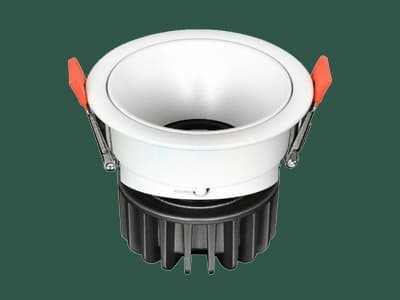

5W - 12W Series
Residential Applications
15W - 30W Series
Commercial Spaces
35W - 50W Series
Industrial & Retail
Technical Specifications
Detailed specifications for our complete range of recessed LED downlights.
| Model | Power | Lumens | Product Size | Cut-out | Color Temp | CRI | Beam Angle |
|---|---|---|---|---|---|---|---|
| UPW-COBTH-457 | 7W | 700LM | Ø63*H69 MM | Ø55 MM | 2700K-6500K | Ra95 | 15°/24°/36°/60° |
| UPW-COBTH-458 | 8W | 800LM | Ø85*H64 MM | Ø75 MM | 2700K-6500K | Ra95 | 15°/24°/36°/60° |
| UPW-COBTH-459 | 12W | 1200LM | Ø85*H74 MM | Ø75 MM | 2700K-6500K | Ra95 | 15°/24°/36°/60° |
| UPW-COBTH-460 | 15W | 1500LM | Ø85*H89 MM | Ø75 MM | 2700K-6500K | Ra95 | 15°/24°/36°/60° |

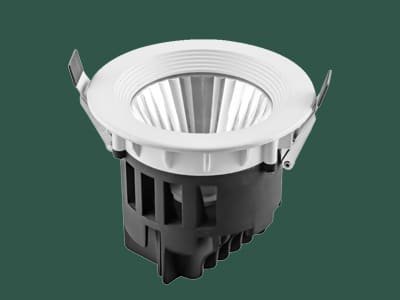

| UPW-COBTH-461 | 20W | 2000LM | Ø110*H83 MM | Ø95 MM | 2700K-6500K | Ra95 | 15°/24°/36°/60° |
Electrical Specifications
- Input Voltage:220-240VAC
- Frequency:50/60Hz
- Power Factor:0.5 or 0.9
- THD:≤15%
- Dimming:0-10V/TRIAC/DALI
Environmental Ratings
- IP Rating:IP65
- Operating Temp:-20°C to +40°C
- Humidity:≤85%RH
- Lifespan:50,000+ hours
- Warranty:3-5 Years
Certifications
- LVD:✓ Certified
- EMC:✓ Certified
- RoHS:✓ Compliant

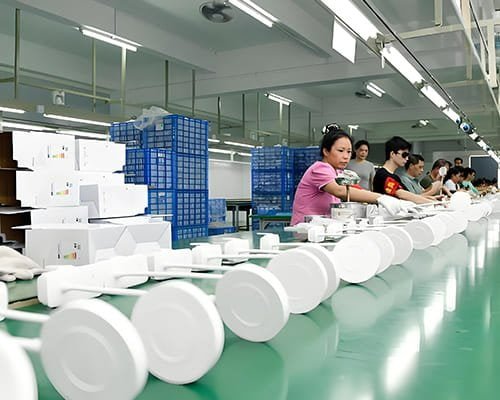

Manufacturing Excellence
Advanced production capabilities ensuring consistent quality and scalable manufacturing for your business needs.
Production Capacity & Quality Control
Monthly Production Capacity
50,000+ units per month across all downlight models with scalable production lines.
Quality Assurance
100% testing including photometric, electrical safety, and thermal performance validation.
Lead Time
15-25 days for standard models, 25-35 days for customized solutions including tooling.
Minimum Order Quantity
500 units for standard models, 1000 units for customized designs with flexible packaging options.
Perfect for Every Application
Our recessed LED downlights deliver optimal performance across residential, commercial, and industrial environments.

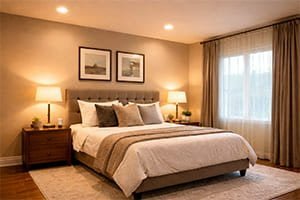

Residential
Living rooms, kitchens, bedrooms, and bathrooms with warm, comfortable lighting.
- • 5W - 20W models
- • 3000K - 4000K CCT
- • Dimmable options

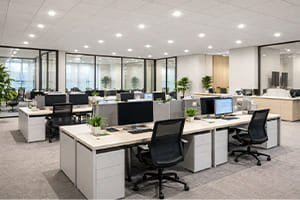

Office & Commercial
Offices, conference rooms, lobbies with professional task lighting.
- • 12W - 30W models
- • 4000K - 5000K CCT
- • High CRI >90

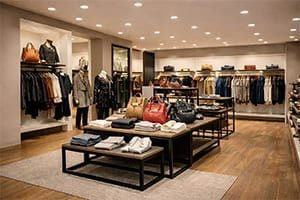

Retail & Hospitality
Stores, restaurants, hotels with accent and general lighting.
- • 20W - 50W models
- • Adjustable beam angles
- • Custom color options

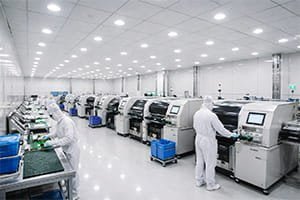

Industrial
Warehouses, factories, workshops requiring high-output lighting.
- • 30W - 50W models
- • 5000K - 6500K CCT
- • Enhanced durability
Get Your Custom Quote
Ready to illuminate your project? Contact our OEM/ODM specialists for customized LED downlight solutions.
Factory Address
Western District, Zhongshan, Guangdong, China
Phone
+86 138 2277 0715
