LED Downlights
Commercial Spaces
Hospitality Lighting

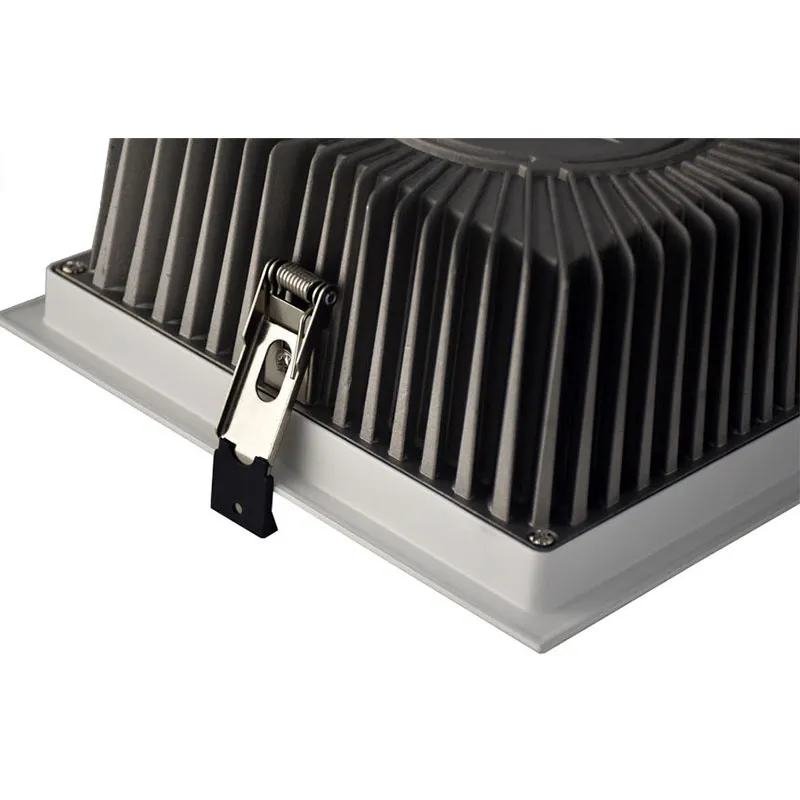

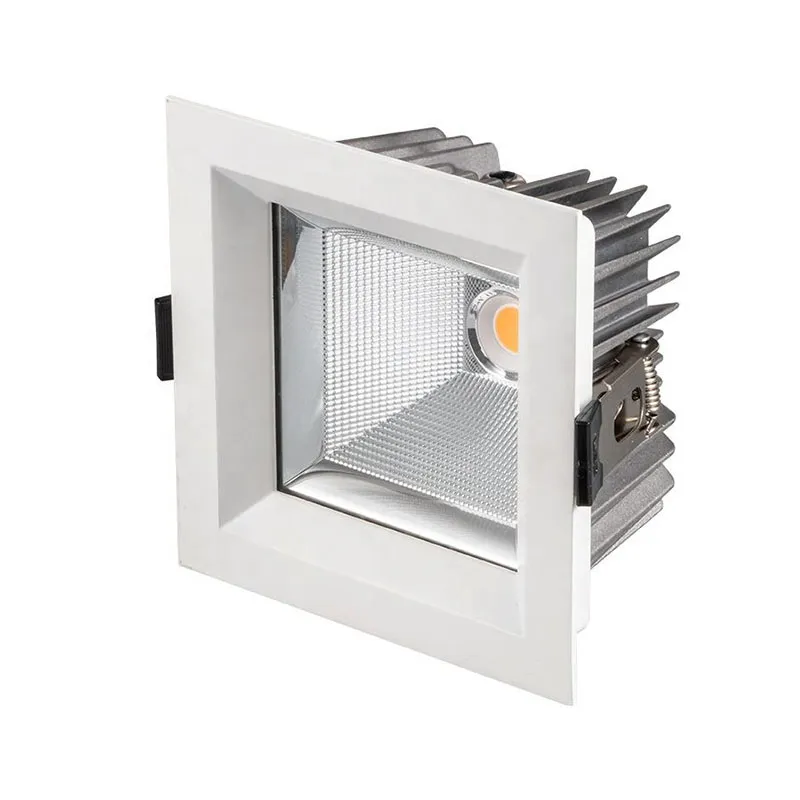

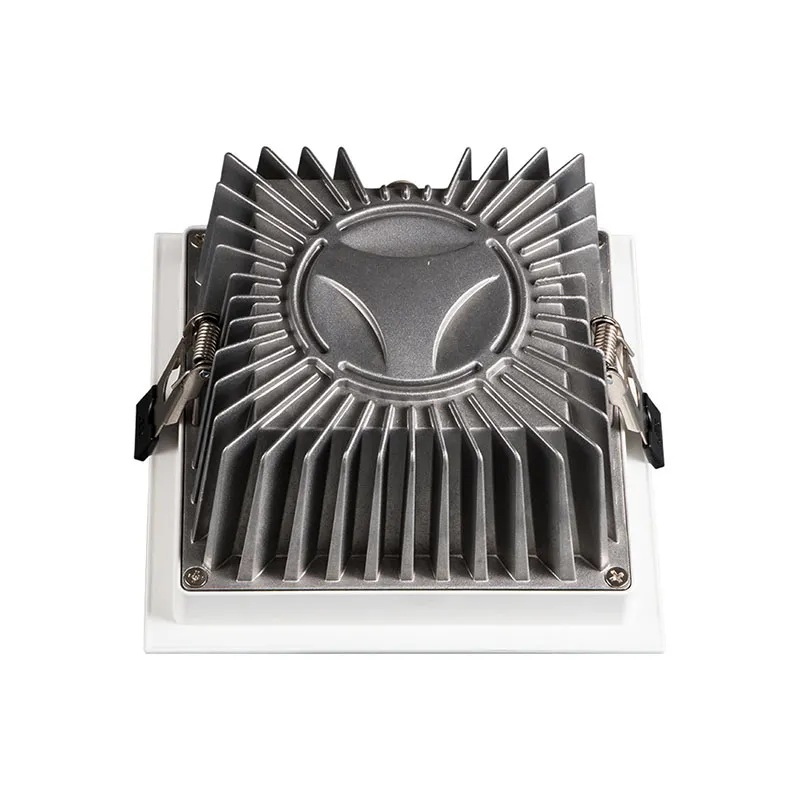

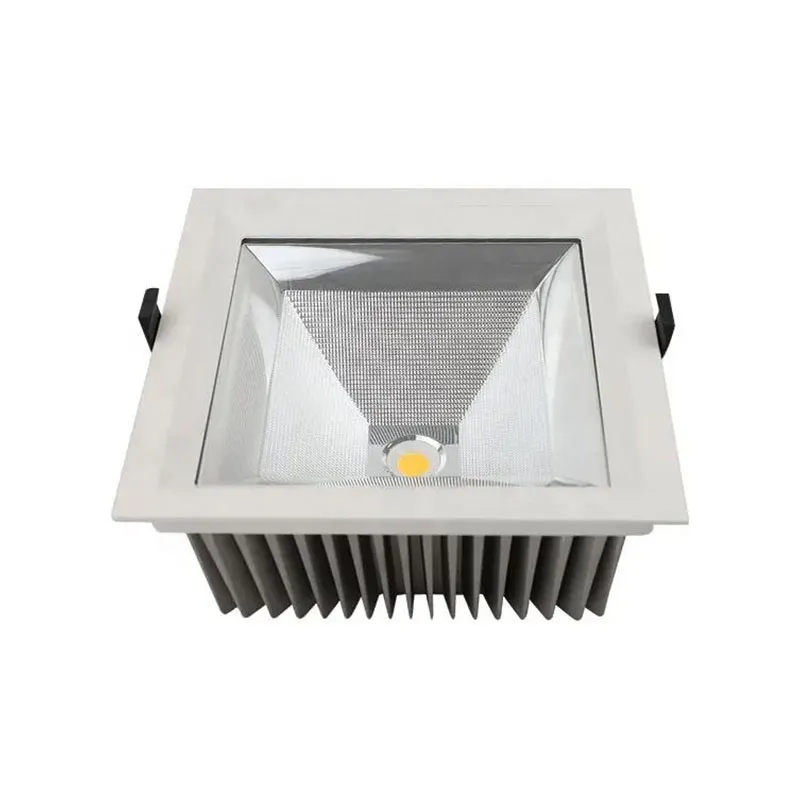

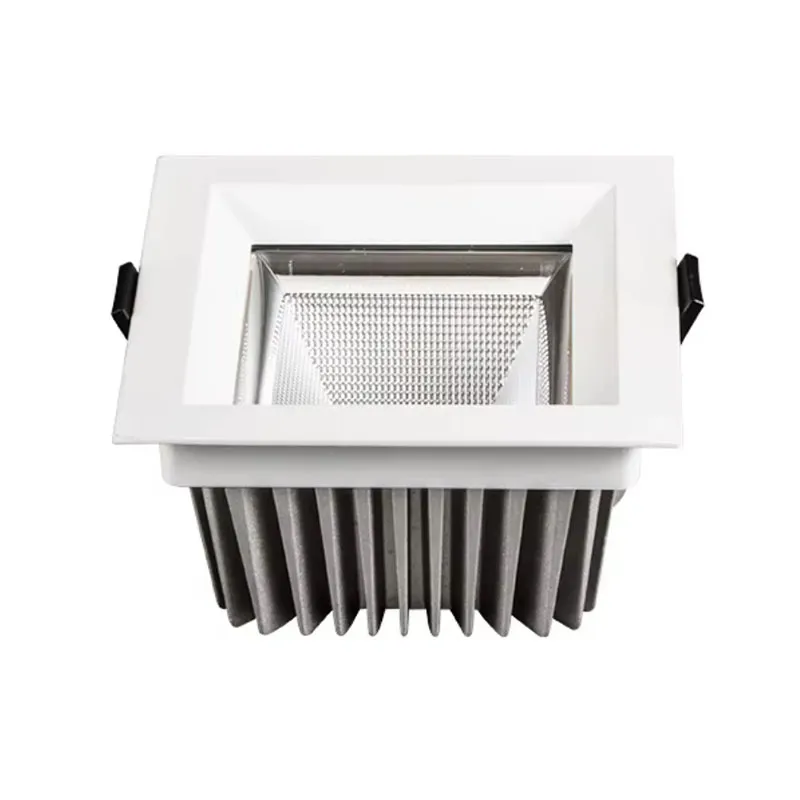

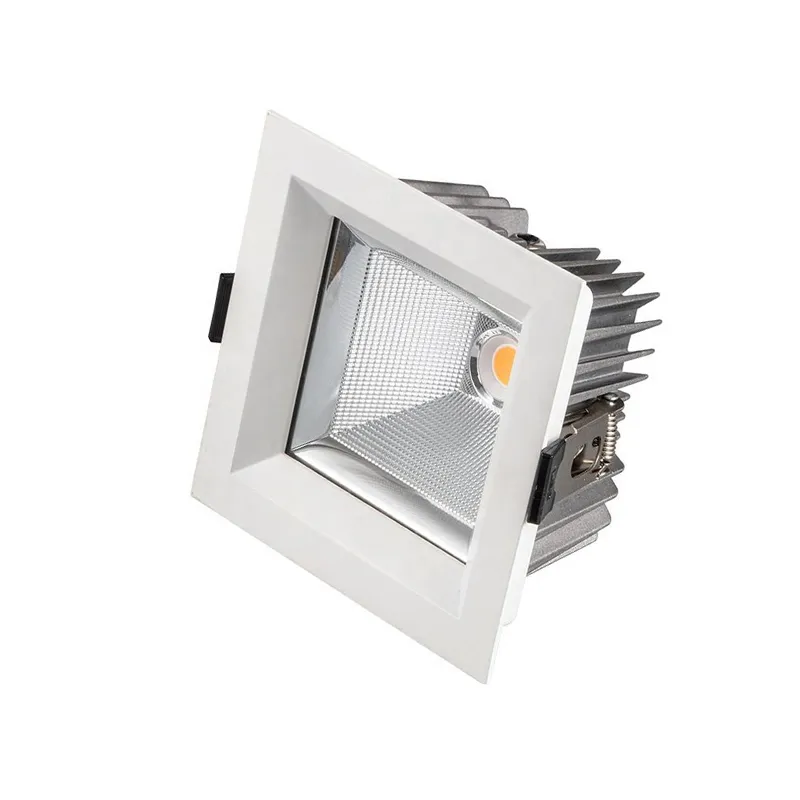

Square COB Recessed IP65 Downlights
Aging Test
4-8 Hours
Warranty
5 Years
Certifications
CE · RoHS
OEM/ODM
Available
Installation Type
Recessed
Technical Specifications
Detailed parameters for each model variant
| Model | Wattage | Input Voltage | Size | Cutout Size | CCT | Luminous Flux | CRI | Beam Angle | IP Grade |
|---|---|---|---|---|---|---|---|---|---|
| UPW-COBTH-685 | 15W | 220V-240VAC | L110*W110*H59 MM | L90*W90 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 60° | IP65 |
| UPW-COBTH-686 | 20W | 220V-240VAC | L127*W127*H70 MM | L110*W110 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 60° | IP65 |
| UPW-COBTH-687 | 30W | 220V-240VAC | L165*W165*H80 MM | L145*W145 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 60° | IP65 |
| UPW-COBTH-688 | 45W | 220V-240VAC | L220*W220*90 MM | L200*W200 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 60° | IP65 |
Customization Options
Tailored to your project requirements
OEM / ODM Capability
Private label & custom development
We offer professional OEM/ODM customization for LED Downlights, including housing design, wattage, CCT, beam angle, dimming function, LED chip, driver, logo, packaging, and certification support. Custom solutions are available for residential, commercial, hotel, retail, and engineering lighting projects.
15+
Years Mfg.
MOQ
Small Batch OK
Fast
Quotation
Related Certifications
Compliance and quality assurance documentation
Downloads
Technical documents and product resources
Request a Quote
Tell us about your project requirements. We'll respond within 24 hours with a competitive quotation.
Secure & Confidential
24hr Response Time
50+ Countries Served
