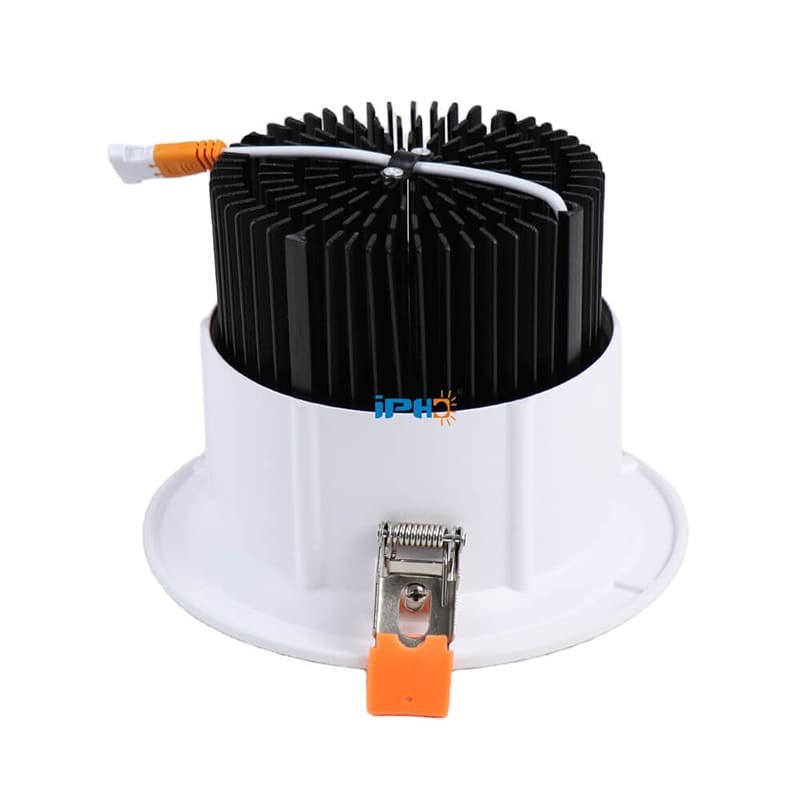

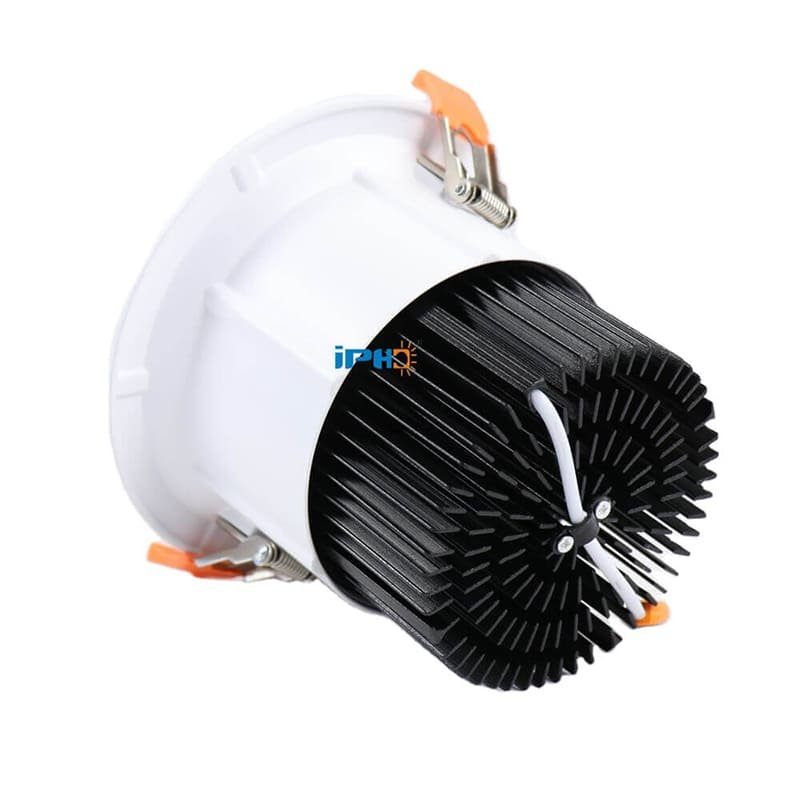

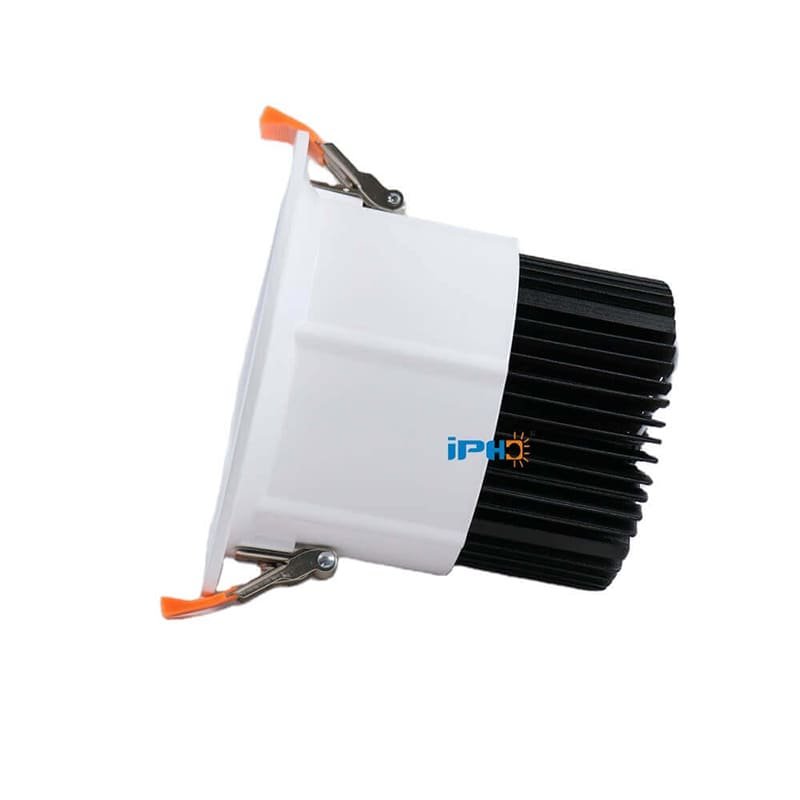

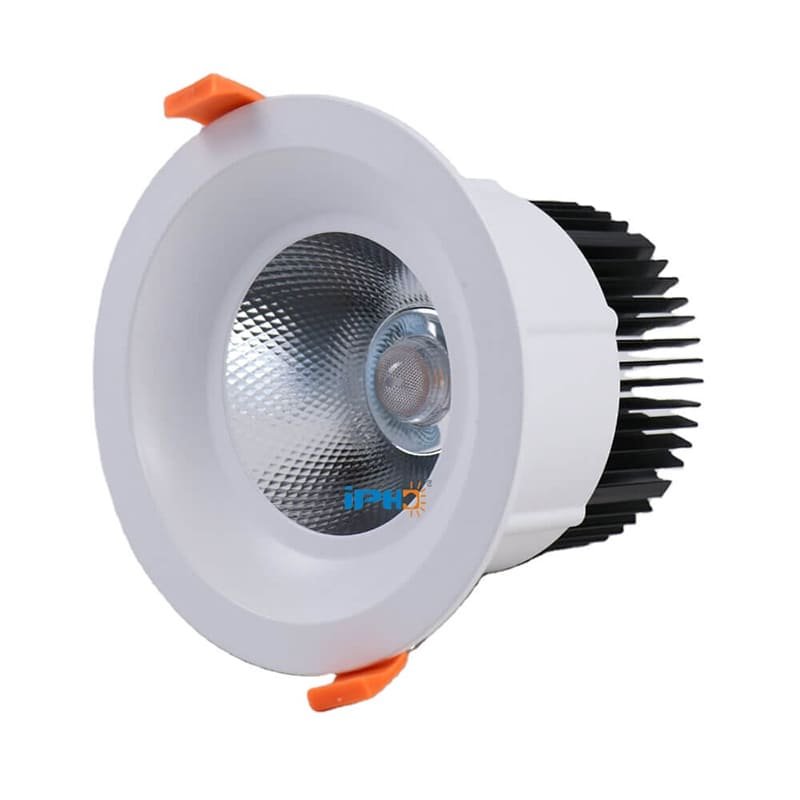

LED Downlights
Commercial Spaces
Hospitality Lighting
Recessed Lighting 10W 20W 30W
Aging Test
4-8 Hours
Warranty
5 Years
Certifications
CE · RoHS
OEM/ODM
Available
Installation Type
Recessed
Technical Specifications
Detailed parameters for each model variant
| Model | Wattage | Input Voltage | Size | Cutout Size | CCT | Luminous Flux | CRI | Beam Angle | IP Grade |
|---|---|---|---|---|---|---|---|---|---|
| UPW-COBTH-001 | 7W | 220V-240VAC | Ø95*H102 MM | Ø75 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 24° | IP20 |
| UPW-COBTH-002 | 10W/15W | 220V-240VAC | Ø115*H116 MM | Ø95 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 24°, 40°, 60° | IP20 |
| UPW-COBTH-003 | 20W/25W | 220V-240VAC | Ø142*H131 MM | Ø125 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 24°, 40°, 60° | IP20 |
| UPW-COBTH-004 | 30W/40W | 220V-240VAC | Ø160*H133 MM | Ø140 MM | 3000K, 4000K, 6500K | 100LM/W | RA90 | 24°, 40°, 60° | IP20 |
Customization Options
Tailored to your project requirements
OEM / ODM Capability
Private label & custom development
We offer professional OEM/ODM customization for LED Downlights, including housing design, wattage, CCT, beam angle, dimming function, LED chip, driver, logo, packaging, and certification support. Custom solutions are available for residential, commercial, hotel, retail, and engineering lighting projects.
15+
Years Mfg.
MOQ
Small Batch OK
Fast
Quotation
Related Certifications
Compliance and quality assurance documentation
Downloads
Technical documents and product resources
Request a Quote
Tell us about your project requirements. We'll respond within 24 hours with a competitive quotation.
Secure & Confidential
24hr Response Time
50+ Countries Served
